BiCoder Communication errors can present in multiple ways. Please review the material regarding the specific type of message you are receiving, and proceed with the troubleshooting steps outlined below.
Two-Wire No Response Messages
Device Two-Wire No Response
Device Two Wire No Response
Info, impact, causes, and troubleshooting a
[insert-question 976249]
Resolving a Single Two-Wire No Response Message
Resolving a Single Two-Wire No Response Message
Ask The Trainer Learn how to troubleshoot a two-wire no response message. Summary
[insert-question 3663839]
[insert-question 3663839]
Resolving Many Two-Wire No Response Messages
Resolving Many Two-Wire No Response Messages
Summary In the event of multiple device no replies, where a multitude of device m
[insert-question 3641589]
Device Valve Decoder Open Circuit Message
Device Valve Decoder Open Circuit
Info, impact, causes, and troubleshooting a
[insert-question 976237]
Device Valve Decoder Short Circuit Message
Device Valve Decoder Short Circuit
Info, impact, causes, and troubleshooting a
[insert-question 976240]

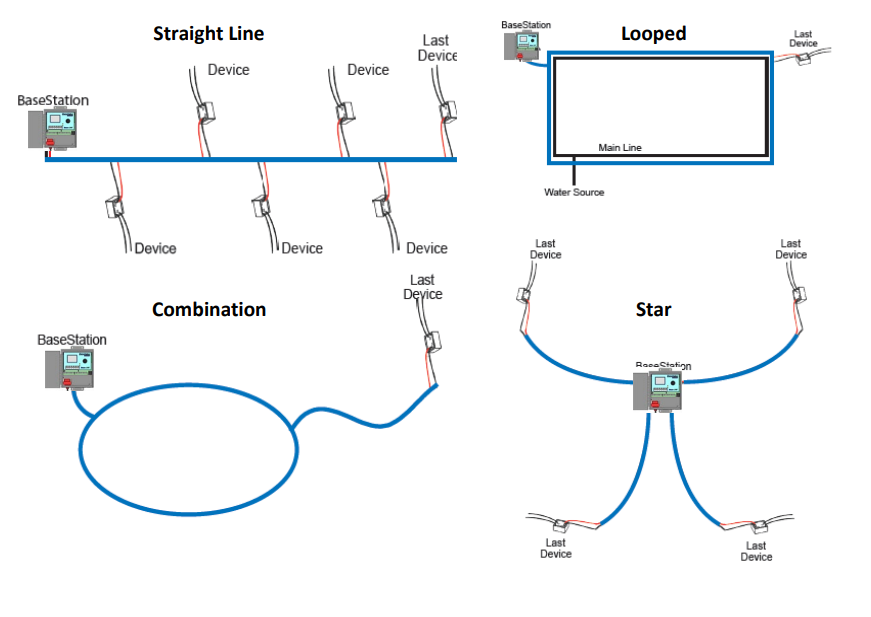

Wire Path Considerations:
While the loop topology might provide a more robust configuration, it is harder to trace the wiring errors that might occur. For this reason, Baseline recommends other topologies over the loop.
The straight line and the star topology are the recommended layouts.
If a topology has multiple last devices (for example, the star configuration), each device must separately meet the distance requirement.
To simplify the illustrations, only the last device is shown for most configurations. You can assume that other devices, both sensors and biCoders, are connected along the length of the two-wire path.
Supported Configurations:
Is the Wire Path Too Long?

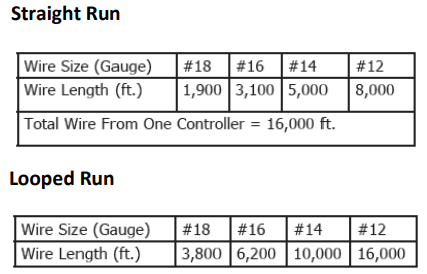

- Total wire length supported depends on the wire gauge used.
Wiring Specs:
