Introduction
This document covers installation for the WC-FM300-US Ultrasonic Flow Monitor for pipe sizes of 1/4 - 2”.
The WaterCompass FM300 Ultrasonic Flow Monitor is a clamp-on flow monitor with a 30 V power supply that connects to the WaterCompass Data Collector.
The monitor sends real-time flow data to the WaterCompass Data Collector that is viewed from the WaterCompass dashboard. Hourly summation of flow data is stored for analysis and reporting.
Contact Information:
WaterCompass 707-285-3250
Before you begin, review the safety precautions at the end of this installation guide.
Pre-Configured Settings
To ensure accuracy, the Flow Monitor will be pre-configured with the following settings:
- Pipe size (varies)
- Pipe type (varies)
- Flow direction (right)
- K-value (60.1)
Materials Provided
- WaterCompass Data Collector (OXR)
- WaterCompass Flow Monitor
- 50' of multi-conductor (3+) shielded plenum rated 18 AWG cable
- 4 wire nutes
- 4 Data Collector mounting screws
- Barrel connector
Equipment Needed
- Philips head screwdriver with long shaft
- Torx screwdriver (for pipes larger than 2")
- Lock Nut
- Zip Ties
- J-box and fittings

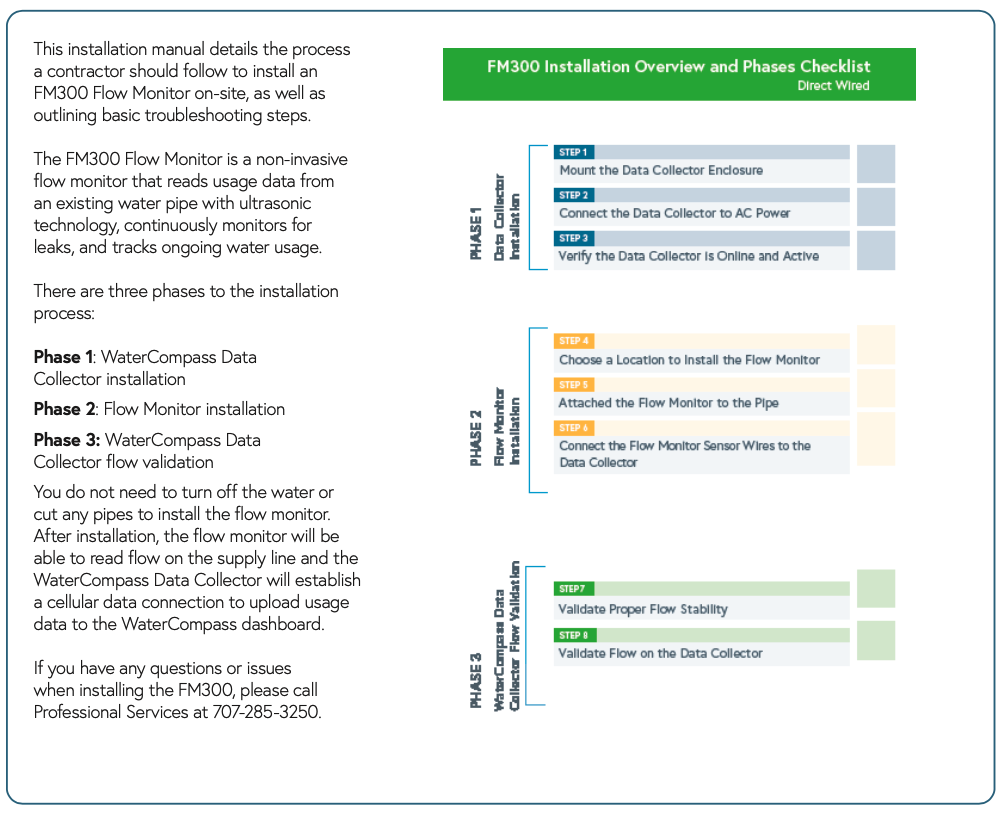

Installation Overview
